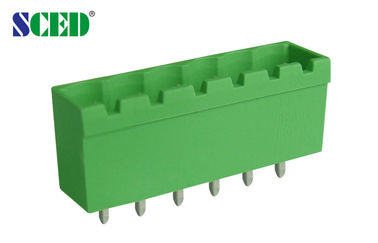

Single Level 5.08mm Plug In Terminal Block Electrical 300V Header

Single Level 5.08mm Plug In Terminal Block Electrical 300V Header

Single Level 5.08mm Plug In Terminal Block  Electrical 300V Header

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TP508H-00

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Wire Inlet: Vertical Wire Inlet Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Color: Green Number Of Contacts: 2P-24P
Pitch: 5.08mm Rated Current: 18A
Rated Voltage: 300V Type: Plug In Terminal Blocks,Pluggable Terminal Blocks, Plug-in Terminal Blocks

Single Level 5.08mm Plug In Terminal Block Electrical 300V Header



Competitive Advantage:


1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand



□Right angle wire inlet;  ■Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double Levels;  □Triple Levels
This male header match with female plugs’ series: TP508P-00, TP508P-02, TP508P-03, TP508P-04, TP508P-05, TP508P-07
Standard color: Green. Other colors also available, please refer to below How to Order and select the color
you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors




How to order:
Single Level 5.08mm Plug In Terminal Block  Electrical 300V Header



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..



Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 18





Wire Range                       AWG







IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 18

400 / 18

500 / 18

Rated Surge Voltage                 KV

4

4

4

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Other Data



PCB Hole Diameter               mm

φ1.4

PinDimension                     mm

1.0 x 1.0





 Single Level 5.08mm Plug In Terminal Block  Electrical 300V Header
