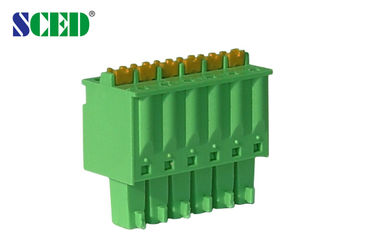

8A Female Sockets Plug In Terminal Blocks Pitch 3.50mm 300V UL CE

8A Female Sockets Plug In Terminal Blocks Pitch 3.50mm 300V UL CE

    • 8A Female Sockets Plug In Terminal Blocks Pitch 3.50mm 300V UL CE
  • 8A Female Sockets Plug In Terminal Blocks Pitch 3.50mm 300V UL CE

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TP381P-23

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Color: Green
    Number Of Contacts: 2P-22P Pitch: 3.50mm
    Rated Current: 8A Rated Voltage: 300V
    Type: Plug In Terminal Blocks,Pluggable Terminal Blocks, Plug-in Terminal Blocks Wire Range: 16-30
    High Light:

    power terminal block connector

    ,

    electric terminal block

    8A Female Sockets Plug In Terminal Blocks Pitch 3.50mm 300V UL CE




    ■Single Level;  □Double Levels;  □Triple Levels

    This plug match with male sockets’ series: TP381H-20, TP381H-20V, TP381H-22, TP381H-22V

    Standard color: Green. Other colors also available, please refer to below How to Order and select the color
    you want.

    Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors




    How to order:
    8A Female Sockets Plug In Terminal Blocks Pitch 3.50mm 300V UL CE 0



    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
    Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
    Elevator, etc..



    Parameter and Drawing Specifications:



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300 / 8





    Wire Range                       AWG

    16-30





    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    160 / 8

    160 / 8

    320 / 8

    Rated Surge Voltage                 KV

    2.5

    2.5

    2.5

    Rated Connecting Capacity           mm2

    1.5

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Spring Clamp

    Stainless Steel

    Terminal / Plating

    Phosphor Bronze / Tin Plated

    Other Data



    Stripping Length                    mm

    9-10




     8A Female Sockets Plug In Terminal Blocks Pitch 3.50mm 300V UL CE 1



    Competitive Advantage:




    1. Stable good quality

    2. Competitive price

    3. Quickly response

    4. Full range products for selection

    5. Flexible to design the exact part per customers’ demand
