| Place of Origin: | Shenzhen, China |
| Brand Name: | SCED |
| Certification: | UL, CE |
| Model Number: | TD60-00 |
| Minimum Order Quantity: | 200 |
|---|---|
| Price: | Get latest price |
| Packaging Details: | Standard Export Carton |
| Delivery Time: | 7-20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1KK poles each monthly |
| Type: | Panel Mount Terminal Block,Barrier Terminal Blocks, Power Terminal Blocks, Electrical Terminal Block | Pitch: | 12.7mm |
|---|---|---|---|
| Number Of Contacts: | Any Poles Available | Wire Range: | 8-26 |
| Rated Voltage: | 600V | Rated Current: | 60A |
| Color: | Black | Applications: | PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control |
| High Light: | panel mount terminal block connector,pcb mount terminal blocks |
||

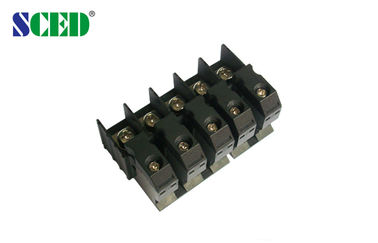

600V 60A Perforation Electrical Terminal Blocks, 12.7mm Feed Through Terminal Block
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 600 / 60 | 600 / 60 |
|
Wire Range AWG | 8-26 | 8-26 |
|
IEC Technical Data |
| ||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 800 / 60 | 1000 / 60 | 1000 / 60 |
Rated Surge Voltage KV | 8 | 8 | 8 |
Rated Connecting Capacity mm2 | 6 | ||
Material |
| ||
Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
Conduction Board / Plating | Brass / Tin Plated | ||
Screw / Plating | Steel / Zinc Plated | ||
Other Data |
| ||
Stripping Length mm | 9-10 | ||
Screw / Torque / lbf.in | M4 / 10.6-13 | ||
Competitive Advantage:
Tag:
Feed through terminal blocks, Feed through terminal connectors, through wall terminal block, Electrical terminal Blocks
