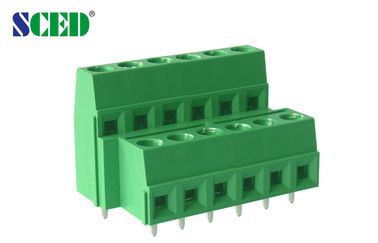

EurosTyle PCB Terminal Block Pitch 5.08mm / Right Angle Terminal Blocks

EurosTyle PCB Terminal Block Pitch 5.08mm / Right Angle Terminal Blocks

  • EurosTyle PCB Terminal Block Pitch 5.08mm / Right Angle Terminal Blocks
EurosTyle PCB Terminal Block Pitch 5.08mm / Right Angle Terminal Blocks
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TJ508-01
Payment & Shipping Terms:
Minimum Order Quantity: 600
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-21 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Color: Green
Number Of Contacts: 2P-24P Pitch: 5.08mm
Rated Current: 10A Rated Voltage: 300V
Type: PCB Terminal Block,PCB Mount Terminal Blocks, PCB Screw Terminal Blocks Wire Range: 12-26
High Light:

pcb screw terminal blocks

,

pcb mount terminal block







EurosTyle PCB Terminal Block Pitch 5.08mm / Right Angle Terminal Blocks







Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..




■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
□Single Deck;  ■Double decks;  □Triple decks
Standard color: Green. Other colors also available, please refer to below How to Order and select the color
you want.

PCB mount terminal blocks, PCB screw terminal blocks, Electrical terminal Blocks, Euro raising terminal
blocks, terminal block manufacturer




How to order:
EurosTyle PCB Terminal Block Pitch 5.08mm / Right Angle Terminal Blocks 0



Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 10



300 / 10

Wire Range                       AWG

12-26



12-26

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 10

400 / 10

630 / 10

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

1.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



PCB Hole Diameter                 mm

φ1.4

Stripping Length                    mm

6-7

Screw / Torque                    / lbf.in

M3 / 4.4-5.3



EurosTyle PCB Terminal Block Pitch 5.08mm / Right Angle Terminal Blocks 1


Competitive Advantage:



1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
