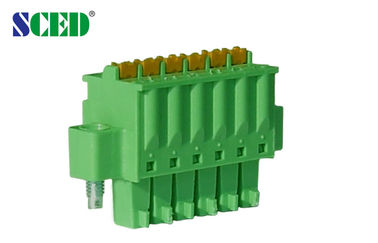

Green 2P - 20P Pluggable Terminal Blocks , Pitch 3.50mm Plug in Terminal Blocks

Green 2P - 20P Pluggable Terminal Blocks , Pitch 3.50mm Plug in Terminal Blocks

Green 2P - 20P Pluggable Terminal Blocks , Pitch 3.50mm Plug in Terminal Blocks

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TP381P-23F

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Type: Screwless Terminal Block,Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connecto Pitch: 3.50mm
Number Of Contacts: 2P-20P Wire Range: 16-30
Rated Voltage: 300V Rated Current: 8A
Color: Green Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Plug, Female Sockets, Pitch: 3.50mm, 300V 8A, 2P-20P, Pluggable Terminal Blocks, Plug-in Terminal Blocks

■Single Level;  □Double Levels;  □Triple Levels

This plug match with male sockets’ series: TP381H-20F, TP381H-20VF, TP381H-22F, TP381H-22VF

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors


How to order:
Green 2P - 20P Pluggable Terminal Blocks , Pitch 3.50mm Plug in Terminal Blocks


Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


 Green 2P - 20P Pluggable Terminal Blocks , Pitch 3.50mm Plug in Terminal Blocks


Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 8





Wire Range                       AWG

16-30





IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

160 / 8

160 / 8

320 / 8

Rated Surge Voltage                 KV

2.5

2.5

2.5

Rated Connecting Capacity           mm2

1.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Spring Clamp

Stainless Steel

Terminal / Plating

Phosphor Bronze / Tin Plated

Other Data



Stripping Length                    mm

9-10



Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
