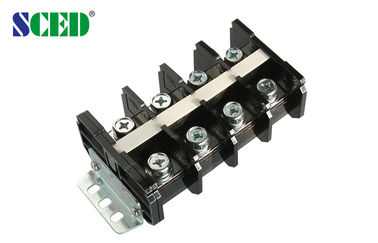

Pitch 27.00mm Barrier High Current Terminal Block Connectors 600V 150A

Pitch 27.00mm Barrier High Current Terminal Block Connectors 600V 150A

Pitch 27.00mm Barrier High Current Terminal Block Connectors 600V 150A

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR150-01-BM0

Payment & Shipping Terms:

Minimum Order Quantity: 300
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 500K poles each monthly
Contact Now
Detailed Product Description
Type: High Current Barrier Terminal Block, Power Terminal Blocks, Electrical Terminal Blocks Pitch: 27.00mm
Rated Voltage: 600V Rated Current: 15A
Color: Black Number Of Contacts: Any Poles Available
Wire Range: 2/0-20 Applications: PCB,Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Pitch 27.00mm Barrier High Current Terminal Block Connectors 600V 150A



Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 150

600 / 150



Wire Range                       AWG

2/0-20

2/0-20



IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

800 / 150

1000 / 150

1000 / 150

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

60

Material



Insulation Material / Inflammability Class

PC / UL94, V-0

Terminal / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

12-14

Screw / Torque                    / lbf.in

M8 / 31-40



■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Level;  □Double levels;  □Triple levels

Standard color: Black. Other colors also available, please refer to below How to Order and select the color

you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks





How to order:

Pitch 27.00mm Barrier High Current Terminal Block Connectors 600V 150A





Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,

Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,

Elevator, etc..





Pitch 27.00mm Barrier High Current Terminal Block Connectors 600V 150A





Competitive Advantage:



1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
