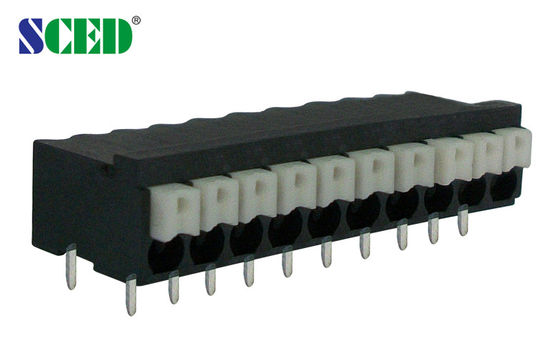

3.50mm Electrical Screwless Terminal Block , 300V 10A Spring Clamp Terminal Block

3.50mm Electrical Screwless Terminal Block , 300V 10A Spring Clamp Terminal Block

3.50mm Electrical Screwless Terminal Block , 300V 10A Spring Clamp Terminal Block

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TJ381-12V

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Type: Screwless Terminal Block,Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connecto Pitch: 3.50mm
Number Of Contacts: 2P-28P Wire Range: 16-22
Rated Voltage: 300V Rated Current: 10A
Color: Grey Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Detailed product Description:
3.50mm Electrical Screwless Terminal Block, 300V 10A Spring Clamp Terminal Block, 2P-28P
■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Deck;  □Double decks;  □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

PCB Spring terminal blocks, Spring Clamp terminal blocks, Screwless terminal blocks, Electrical terminal Blocks, terminal block factory


How to order:

3.50mm Electrical Screwless Terminal Block , 300V 10A Spring Clamp Terminal Block


Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/10





Wire Range                       AWG

16-22





IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

160 / 10

250 / 10

400 / 10

Rated Surge Voltage                 KV

2.5

2.5

2.5

Rated Connecting Capacity           mm2

1.5

Material



Insulation Material / Inflammability Class

LCP / UL94, V-0

Spring / Plating

Stainless Steel / -

Terminal / Plating

Phosphor Bronze / Tin Plated

Other Data



PCB Hole Diameter                  mm

φ1.1

Stripping Length                    mm

8-9




3.50mm Electrical Screwless Terminal Block , 300V 10A Spring Clamp Terminal Block




Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
