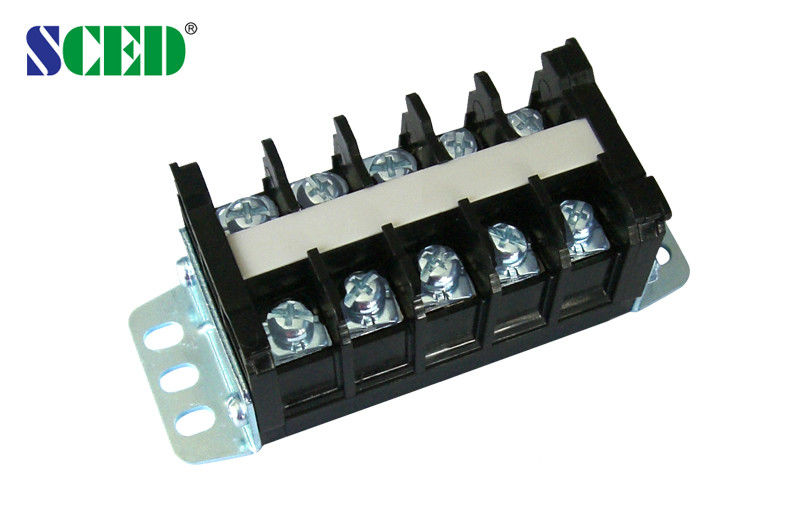

Electric Power High Current Terminal Block Pitch 14.00mm 40A 2Pin - 28Pin

Electric Power High Current Terminal Block Pitch 14.00mm 40A 2Pin - 28Pin

  • Electric Power High Current Terminal Block Pitch 14.00mm  40A 2Pin - 28Pin
  • Electric Power High Current Terminal Block Pitch 14.00mm  40A 2Pin - 28Pin
Electric Power High Current Terminal Block Pitch 14.00mm  40A 2Pin - 28Pin
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR40-01-BM0
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Applications: PCB,Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Color: Black
Number Of Contacts: 2P-28P Pitch: 14.00mm
Rated Current: 40A Rated Voltage: 600V
Type: High Current Barrier Terminal Block, Power Terminal Blocks, Electrical Terminal Blocks Wire Range: 8-22
High Light:

pcb wire terminals

,

power terminal block





Electric Power High Current Terminal Block Pitch 14.00mm 40A 2Pin - 28Pin



■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Level;  □Double levels;  □Triple levels

Standard color: Black. Other colors also available, please refer to below How to Order and select the color

you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers





How to order:

Electric Power High Current Terminal Block Pitch 14.00mm  40A 2Pin - 28Pin 0





Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,

Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,

Elevator, etc..





Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 40

600 / 40



Wire Range                       AWG

8-22

8-22



IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

800 / 40

1000 / 40

1000 / 40

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

8

Material



Insulation Material / Inflammability Class

PC / UL94, V-0

Terminal / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

10-12

Screw / Torque                    / lbf.in

M5 / 14-18





Electric Power High Current Terminal Block Pitch 14.00mm  40A 2Pin - 28Pin 1





Competitive Advantage:



1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
