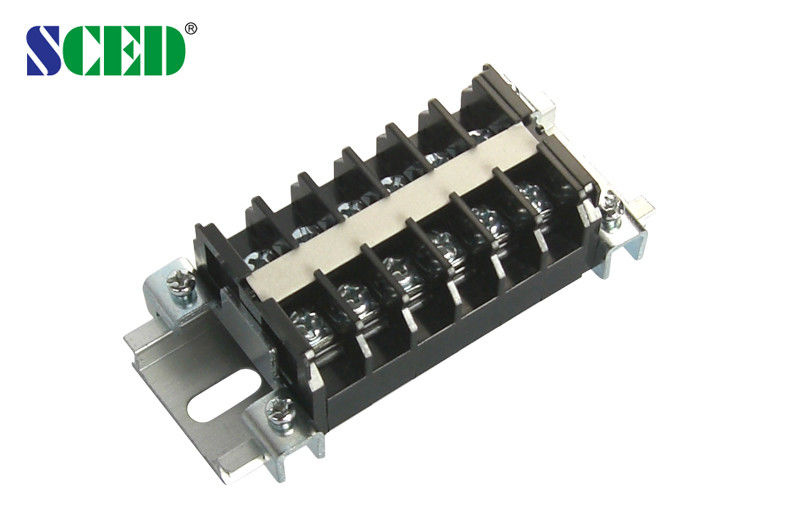

Plastic Single Level High Current Terminal Block 9.50mm Pitch , 600V 20A

Plastic Single Level High Current Terminal Block 9.50mm Pitch , 600V 20A

    • Plastic Single Level High Current Terminal Block 9.50mm Pitch , 600V 20A
    • Plastic Single Level High Current Terminal Block 9.50mm Pitch , 600V 20A
  • Plastic Single Level High Current Terminal Block 9.50mm Pitch , 600V 20A

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TR20-01-FaM0

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Type: High Current Barrier Terminal Block, Power Terminal Blocks, Electrical Terminal Blocks Pitch: 9.50mm
    Rated Voltage: 600V Rated Current: 20A
    Color: Black Number Of Contacts: Any Poles Available
    Wire Range: 12-24 Applications: PCB,Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

    Plastic Single Level High Current Terminal Block 9.50mm Pitch , 600V 20A



    ■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

    ■Single Level;  □Double levels;  □Triple levels

    Standard color: Black. Other colors also available, please refer to below How to Order and select the color

    you want.

    Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks





    How to order:

    Plastic Single Level High Current Terminal Block 9.50mm Pitch , 600V 20A





    Applications:



    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,

    Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,

    Elevator, etc..





    Parameter and Drawing Specifications:



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    600 / 20

    600 / 20



    Wire Range                       AWG

    12-24

    12-24



    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    800 /20

    1000 / 20

    1000 / 20

    Rated Surge Voltage                 KV

    8

    8

    8

    Rated Connecting Capacity           mm2

    2

    Material



    Insulation Material / Inflammability Class

    PC / UL94, V-0

    Terminal / Plating

    Brass / Nickel Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data



    Stripping Length                    mm

    8-9

    Screw / Torque                    / lbf.in

    M 3.5 / 7-10





    Plastic Single Level High Current Terminal Block 9.50mm Pitch , 600V 20A





    Competitive Advantage:



    1. Stable good quality

    2. Competitive price

    3. Quickly response

    4. Full range products for selection

    5. Flexible to design the exact part per customers’ demand
