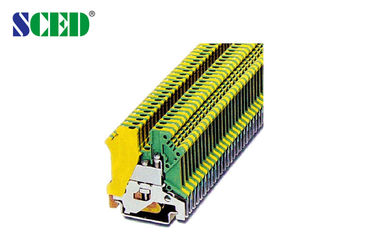

AWG 28 - 12 Din Rail Mounted Terminal Blocks With Vertical Wire Inlet

AWG 28 - 12 Din Rail Mounted Terminal Blocks With Vertical Wire Inlet

  • AWG 28 - 12 Din Rail Mounted Terminal Blocks With Vertical Wire Inlet
AWG 28 - 12 Din Rail Mounted Terminal Blocks With Vertical Wire Inlet
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR-KG3N
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Type: Rail Mounted Terminal Blocks,Barrier Terminal Blocks, Power Terminal Blocks Wire Range: 28-12
Color: Grey Applications: Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev
Wire Inlet: Right Angle Wire Inlet Terminal Width: 5.2mm
High Light:

rail mount terminal block

,

grounding terminal block

AWG 28-12 Rail Mounted Terminal Blocks With Vertical Wire Inlet



Parameter and Drawing Specifications:



Description                    Color

Type

Terminal                    Green & Yellow

TR-KG3N

Zack Strip                      White

ZB5         SZS0.6x3.5

Rail Material

Aluminum / Steel

Dimensions

5.2/42.5

Height (U35: 7.5/U35: 15G 32)              mm

47/54.5/52

Wire Fixing Screw / Torque                 Nm

M3 / 0.6-0.8

Center Fixing Screw / Torque                Nm

M2.5 / 0.5-0.6

Stripping Length                          mm

8





Detailed product Description:



Terminal Width: 5.2mm, AWG:28-12, Din Rail Terminal Blocks, Ground Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

Din rail terminal blocks, rail terminal connectors, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks







How to order:



 AWG 28 - 12 Din Rail Mounted Terminal Blocks With Vertical Wire Inlet 0





Applications:



Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
