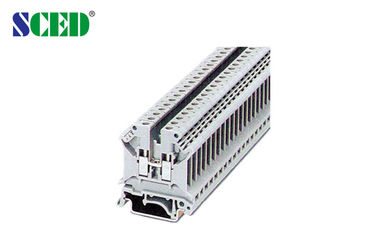

Terminal width 6.2mm Compact Din Rail Terminal Blocks AWG 30 - 10 600V 30A

Terminal width 6.2mm Compact Din Rail Terminal Blocks AWG 30 - 10 600V 30A

  • Terminal width 6.2mm Compact Din Rail Terminal Blocks AWG 30 - 10 600V 30A
Terminal width 6.2mm Compact Din Rail Terminal Blocks AWG 30 - 10 600V 30A
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR-5N
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Type: Rail Mounted Terminal Blocks,Barrier Terminal Blocks, Power Terminal Blocks Wire Range: 30-10
Rated Voltage: 600V Rated Current: 30A
Color: Black Applications: Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev
Wire Inlet: Right Angle Wire Inlet Terminal Width: 6.2mm
High Light:

rail mount terminal block

,

din rail mount terminal blocks

Detailed product Description:
TTerminal width 6.2mm Compact Din Rail Terminal Blocks AWG 30-10 600V 30A, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double levels;  □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors

How to order:
Terminal width 6.2mm Compact Din Rail Terminal Blocks AWG 30 - 10 600V 30A 0


Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Parameter and Drawing Specifications:




Description                    Color

Type

Terminal                       Grey

TR-5N

End Cover                      Grey


D-TR-3/16

Fixed Bridge


FBI 10-6        Imax: 41A

Insertion Bridge


EB 10-6        Imax: 32A

Separating Plate


TS-K

Partition Plate


ATP-TR

Zack Strip                      White

ZB6

Screwdriver

SZS0.6×3.5

Rail Material

aluminum

Dimensions                             mm

6.2/42.5/2

Height (U35: 7.5/U35: 15G 32)              mm

47/54.5/52

Screw / Torque                           Nm

M3 / 0.6-0.8

Stripping Length                          mm

8

IEC Technical Data



Max. Load Current / Cross Section         A / mm2

41 / 6

Rated Surge Voltage / Contamination Class    KV / -

8 / 3

Surge Voltage Category

Ⅲ / Ⅰ




Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
