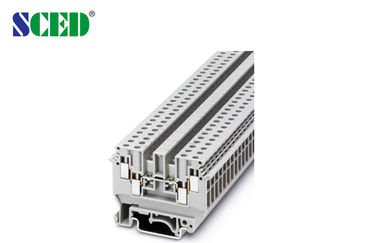

AWG 24 - 10 6.2mm Single Level Compact Din Rail Mount Terminal Blocks 300V 32A

AWG 24 - 10 6.2mm Single Level Compact Din Rail Mount Terminal Blocks 300V 32A

  • AWG 24 - 10 6.2mm Single Level Compact Din Rail Mount Terminal Blocks 300V 32A
AWG 24 - 10 6.2mm Single Level Compact Din Rail Mount Terminal Blocks 300V 32A
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR-4N
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Type: Rail Mounted Terminal Blocks,Barrier Terminal Blocks, Power Terminal Blocks Wire Range: 24-10
Rated Voltage: 300V Rated Current: 32A
Color: Black Applications: Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev
Wire Inlet: Right Angle Wire Inlet Terminal Width: 6.2mm
High Light:

din rail mount terminal blocks

,

grounding terminal block

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Detailed product Description:

AWG 24-10 6.2mm Single Level Compact Din Rail Mount Terminal Blocks 300V 32A, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double levels;  □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors


How to order:
AWG 24 - 10 6.2mm Single Level Compact Din Rail Mount Terminal Blocks 300V 32A 0



Parameter and Drawing Specifications:



Description                    Color

Type

Terminal                       Grey

TR-4N

End Cover                      Grey


D-TR-4

Fixed Bridge


FBRI 10-6        Imax: 34A

Insertion Bridge


EB  10-6        Imax: 34A

Separating Plate


TS-KK3

Partition Plate




Zack Strip                      White

ZB6

Screwdriver

SZS0.6×3.5

Rail Material

aluminum

Dimensions                             mm

6.2/63.5/1.5

Height (U35: 7.5/U35: 15G 32)              mm

47/54.5/52.5

Screw / Torque                           Nm

M3 / 0.6-0.8

Stripping Length                          mm

8

IEC Technical Data



Max. Load Current / Cross Section         A / mm2

32/4

Rated Surge Voltage / Contamination Class    KV / -

6 / 3

Surge Voltage Category






Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
