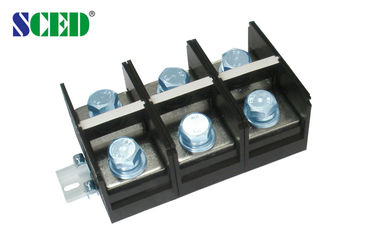

High Current Electrical Rail Mounted Terminal Blocks 2P - 12P 60.00mm 600V 500A

High Current Electrical Rail Mounted Terminal Blocks 2P - 12P 60.00mm 600V 500A

High Current Electrical Rail Mounted Terminal Blocks 2P - 12P 60.00mm 600V 500A

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR500-00-FaM0

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Wire Inlet: Right Angle Wire Inlet Type: Rail Mounted Terminal Blocks,Barrier Terminal Blocks, Power Terminal Blocks
Pitch: 60.00mm Number Of Contacts: 2P-12P
Rated Voltage: 600V Rated Current: 500A
Color: Black Applications: Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev

Detailed product Description:
High Current Electrical Rail Mounted Terminal Blocks 2P - 12P 60.00mm 600V 500A
■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double levels;  □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors

How to order:
High Current Electrical Rail Mounted Terminal Blocks 2P - 12P 60.00mm 600V 500A


Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 500

600 / 500



Wire Range                       AWG

350-750kcmil

350-750kcmil



IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

1000 / 500

1000 / 500

1000 / 500

Rated Surge Voltage                 KV

10

10

10

Rated Connecting Capacity           mm2

380

Material



Insulation Material / Inflammability Class

PC / UL94, V-0

Terminal / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

30-35

Screw / Torque                    / lbf.in

M12 / 200-213

High Current Electrical Rail Mounted Terminal Blocks 2P - 12P 60.00mm 600V 500A




Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
