Plastic Cover High Voltage Terminal Block 40A M4 Screw Brass 13mm Power Connectors

Plastic Cover High Voltage Terminal Block 40A M4 Screw Brass 13mm Power Connectors

  • Plastic Cover High Voltage Terminal Block 40A M4 Screw Brass 13mm Power Connectors
  • Plastic Cover High Voltage Terminal Block 40A M4 Screw Brass 13mm Power Connectors
Plastic Cover High Voltage Terminal Block 40A M4 Screw Brass 13mm Power Connectors
Product Details:
Place of Origin: Guangdong China
Brand Name: SCED
Certification: UL,CE,CUL, CQC and VDE etc.
Model Number: TB1300-00-C
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Piece/Pieces
Price: USD 0.076-0.152 Per Pole
Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Delivery Time: 5-20 Working Days
Payment Terms: T/T, L/C
Supply Ability: 1000000 Pole/Poles per Month
Contact Now
Detailed Product Description
Pitch: 13mm Color: Black
Current: 40A Voltage: 600V
Poles: 2-12 Poles Wire Range: 20-8 AWG
Terminal: Brass Screw: M4
Rated Surge Voltage: No Abnormal Within 1 Minute Contact Resistance: Less Than 8mΩ
High Light:

40A High Voltage Terminal Block

,

13mm High Voltage Terminal Block

,

High Voltage Barrier Terminal Block



Plastic Cover high voltage terminal block 40A M4 Screw Brass 13mm Power Connectors



Detailed product Description:



Pitch 13.00mm, 600V 40A, 2-12P, Barrier Terminal Blocks, Power Terminal Blocks



■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Level; □Double levels; □Triple levels

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.



How to order:



Plastic Cover High Voltage Terminal Block 40A M4 Screw Brass 13mm Power Connectors 0



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 40 600 / 40 600 / 5
Wire Range AWG 20-8 20-8 20-8
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 / 40 1000 / 40 1000 / 40
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 4
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm φ2.5
Stripping Length mm 10-11
Screw / Torque / lbf.in M 4 / 10.6-13

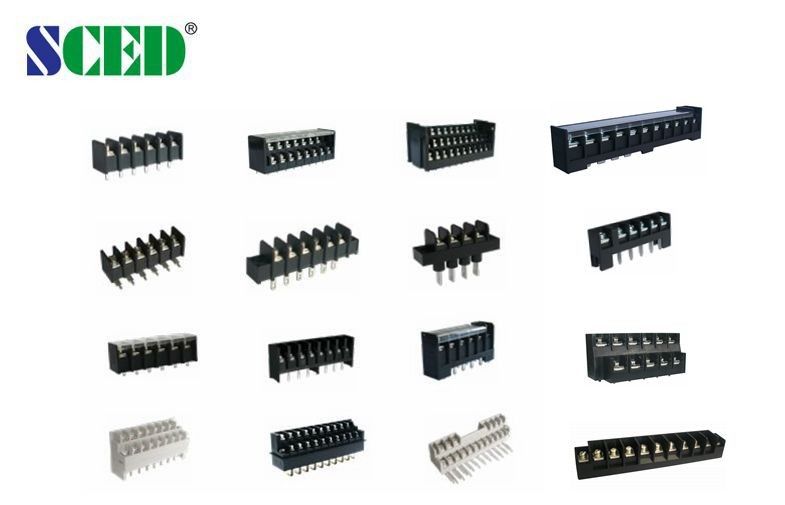

Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Plastic Cover High Voltage Terminal Block 40A M4 Screw Brass 13mm Power Connectors 1
