65A 10.1mm Through Panel Terminal Blocks Brass UL94 V0

65A 10.1mm Through Panel Terminal Blocks Brass UL94 V0

  • 65A 10.1mm Through Panel Terminal Blocks Brass UL94 V0
65A 10.1mm Through Panel Terminal Blocks Brass UL94 V0
Product Details:
Place of Origin: Guangdong China
Brand Name: SCED
Certification: CE,UL,CUL,CQC,VDE
Model Number: TR-10N-04
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Piece/Pieces
Price: USD 0.1-0.25
Packaging Details: Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198
Delivery Time: 5-20 Work Days
Payment Terms: L/C, T/T
Supply Ability: 1000000 Pole/Poles per Month
Contact Now
Detailed Product Description
Color: Grey Insulation Material: PA66
Voltage: 300V Current: 65A
Terminal Width: 10.1mm Material: Brass
Plating: Nickel Plating Rated Surge Voltage: No Abnormal Within 1 Minute
Inflammability Class: UL94, V-0 Contact Resistance: Less Than 8mΩ
High Light:

10.1mm Through Panel Terminal Blocks


65A Through Panel Terminal Blocks


UL94 V0 Panel Mount Terminal Blocks

10.1mm Terminal Width Through Panel Terminal Blocks  Brass UL94 V0 65A


Detailed product Description:

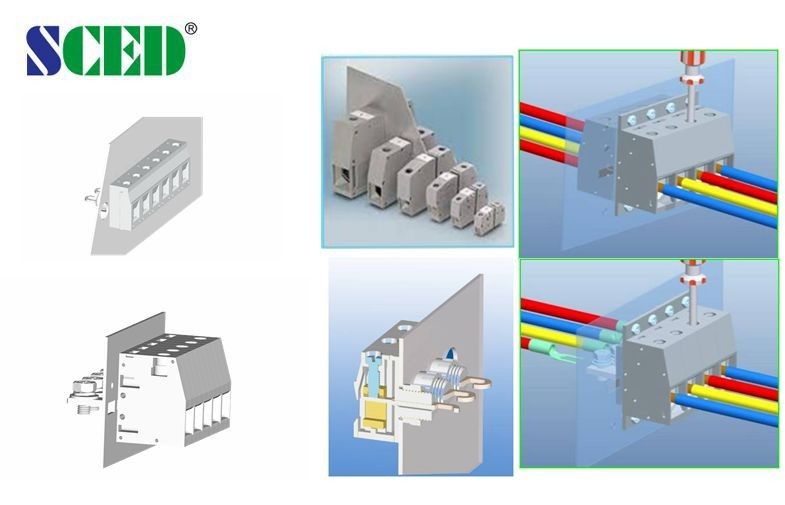

Pitch 10.1mm, 300V 65A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors

■ Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■ Single Deck;  □Double decks;  □Triple decks

Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.



1. PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting

2. Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Parameter and Drawing Specifications:

UL Technical Data




Rated Voltage / Current              V/A

300 / 65


300 / 10

Wire Range                       AWG




IEC Technical Data


Overvoltage Category

Contamination Class




Rated Voltage / Current              V/A

630 / 76

800 / 76

1000 / 76

Rated Surge Voltage                 KV




Rated Connecting Capacity           mm2




Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Conduction Board / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data


Stripping Length                    mm


Screw / Torque                    / lbf.in

M4 / 10.6-13


Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand65A 10.1mm Through Panel Terminal Blocks Brass UL94 V0 0
