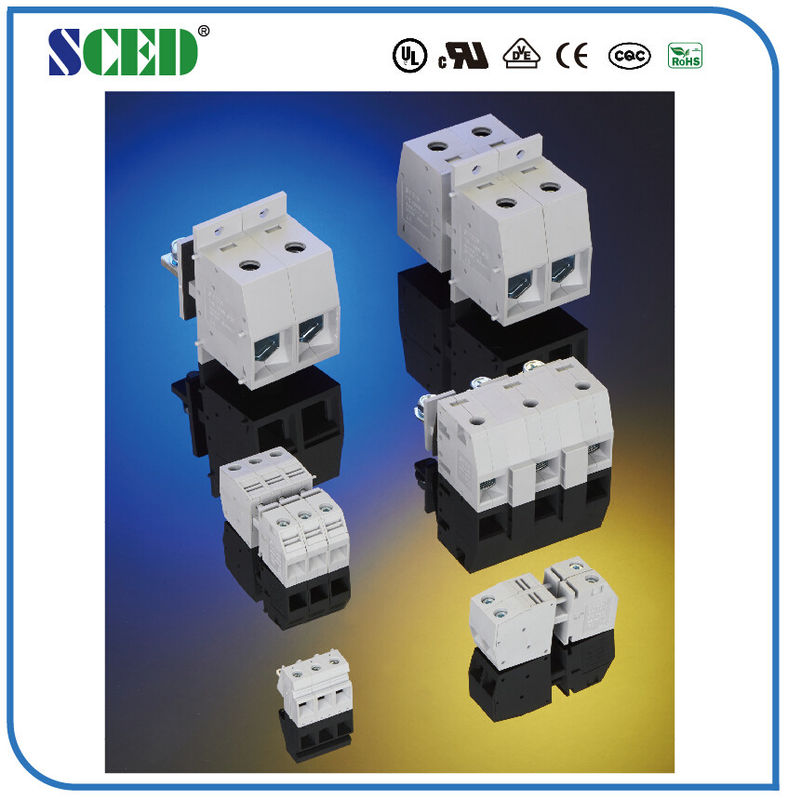

600V 150A Through Panel Terminal Blocks Pitch 18.8mm 2 - 24 Pole Right Angle

600V 150A Through Panel Terminal Blocks Pitch 18.8mm 2 - 24 Pole Right Angle

  • 600V 150A Through Panel Terminal Blocks Pitch 18.8mm 2 - 24 Pole Right Angle
600V 150A Through Panel Terminal Blocks Pitch 18.8mm 2 - 24 Pole Right Angle
Product Details:
Place of Origin: Guangdong China
Brand Name: SCED
Certification: CE, UL, CUL, CQC, VDE etc.
Model Number: TR-50N-02
Payment & Shipping Terms:
Minimum Order Quantity: 500 Piece/Pieces
Price: USD 0.864-1.628 Per Pole
Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Delivery Time: 5-21 days
Payment Terms: T/T
Supply Ability: 1000000 Pole/Poles per Month
Contact Now
Detailed Product Description
Pitch: 18.8mm Current: 150A
Voltage: 600V Color: Grey
Screw: M3 Contact Resistance: Less Than 8mΩ
Rated Surge Voltage: No Abnormal Within 1 Minute Inflammability Class: UL94, V-0
Insulation Resistance: Above DC500V, 500MΩ Pole: 2-24 Poles
High Light:

150A Through Panel Terminal Blocks

,

600V Through Panel Terminal Blocks

,

Pitch 18.8mm Panel Mount Terminal Blocks

600V/150A Through Panel Terminal Blocks Pitch 18.8mm 2-24 Pole Right Angle



Detailed product Description:



Pitch 18.8mm, 600V 150A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors

■ Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■ Single Deck;  □Double decks;  □Triple decks

Standard color: Grey. Other colors also available.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 150



600 / 5

Wire Range                       AWG

6-1/0



6-1/0

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

830 / 150

1000 / 150

1000 / 150

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

50

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Steel / Nickel Plated

Conduction Board / Plating

Copper / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

24

Screw / Torque                    / lbf.in

M6 / 38-40



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand600V 150A Through Panel Terminal Blocks Pitch 18.8mm 2 - 24 Pole Right Angle 0
