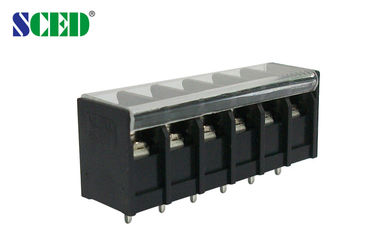

TB Battery Barrier Terminal Block 15A Quick Disconnect 7.62mm Pitch

TB Battery Barrier Terminal Block 15A Quick Disconnect 7.62mm Pitch

  • TB Battery Barrier Terminal Block 15A Quick Disconnect 7.62mm Pitch
TB Battery Barrier Terminal Block 15A Quick Disconnect 7.62mm Pitch
Product Details:
Place of Origin: China
Brand Name: SCED
Certification: UL, CE
Model Number: TB762-21-C
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Pitch: 7.62mm
Rated Current: 15A Rated Voltage: 300V
Type: Barrier Terminal Block,Power Terminal Blocks, Electrical Terminal Blocks Wire Range: 14-22
High Light:

barrier type terminal block

,

pcb terminal blocks





TB Battery Barrier Terminal Block 15A Quick Disconnect 7.62mm Pitch





Parameter and Drawing Specifications:





UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 15



300 / 10

Wire Range                       AWG

14-22



14-22

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

500 / 24

630 / 24

800 / 24

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass /Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data



PCB Hole Diameter                  mm

φ1.9

Stripping Length                    mm

7-8

Screw / Torque                    / lbf.in

M 3 / 5-7



 TB Battery Barrier Terminal Block 15A Quick Disconnect 7.62mm Pitch 0





Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.



How to order:



 TB Battery Barrier Terminal Block 15A Quick Disconnect 7.62mm Pitch 1





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

 TB Battery Barrier Terminal Block 15A Quick Disconnect 7.62mm Pitch 2





Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
