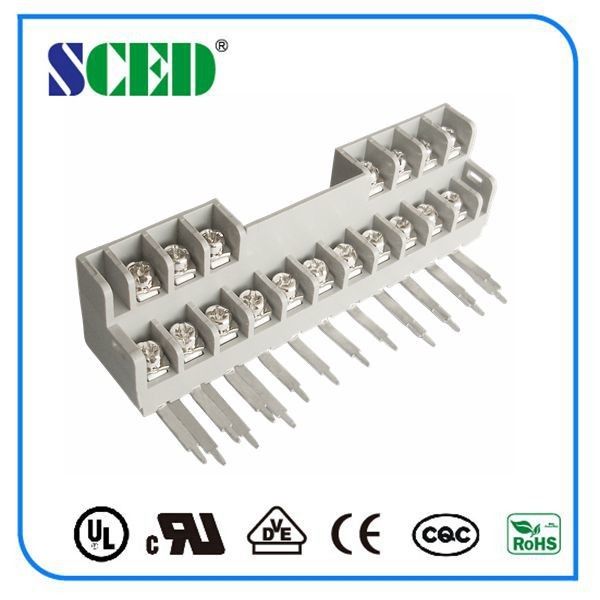

PCB Screw Connector Barrier Terminal Block 7.62mm 9.52mm For Inverter Power

PCB Screw Connector Barrier Terminal Block 7.62mm 9.52mm For Inverter Power

  • PCB Screw Connector Barrier Terminal Block 7.62mm 9.52mm For Inverter Power
  • PCB Screw Connector Barrier Terminal Block 7.62mm 9.52mm For Inverter Power
  • PCB Screw Connector Barrier Terminal Block 7.62mm 9.52mm For Inverter Power
  • PCB Screw Connector Barrier Terminal Block 7.62mm 9.52mm For Inverter Power
PCB Screw Connector Barrier Terminal Block 7.62mm 9.52mm For Inverter Power
Product Details:
Place of Origin: China
Brand Name: SCED
Certification: UL, CE
Model Number: TB762-14V
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Pitch: 7.62mm Poles: 2-14
Color: Black Material: PBT
Key Words: Barrier Terminal Block Product Name: PCB Terminal Block
High Light:

barrier type terminal block

,

pcb terminal blocks



PCB Screw Connector Barrier Terminal Block 7.62mm 9.52mm For Inverter Power





Quick Details:



1. PCB barrier Terninal Blocks is widely used in automation, frequency conversion, communication, power supply and etc.



2. Multiple Pitch: 7.62mm,8.25mm,8.70mm,9.525mm,10.00mm,11.00mm,13.00mm,13.50mm,14.50mm,20.00mm,21.00mm

3. With or without cover, one or two rows, from one level to three levels, etc.



4. Materials: Plastic housing is PBT(UL94 V-0) Operating temperature: -40~+120 Clamp cage and terminal is high quality brass or copper screw is high-quality steel



Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 15



300 / 10

Wire Range                                AWG

14-24



14-24

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current                 V/A

250 / 24

320 / 24

400 / 24

Rated Surge Voltage                     KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass /Tin Plated

Screw / Plating

Steel / Nickel plated

Other Data



PCB Hole Diameter                  mm

φ1.7

Stripping Length                      mm

7-8

Screw / Torque                    / lbf.in

M 3 / 5-7







Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:



PCB Screw Connector Barrier Terminal Block 7.62mm 9.52mm For Inverter Power 0





Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

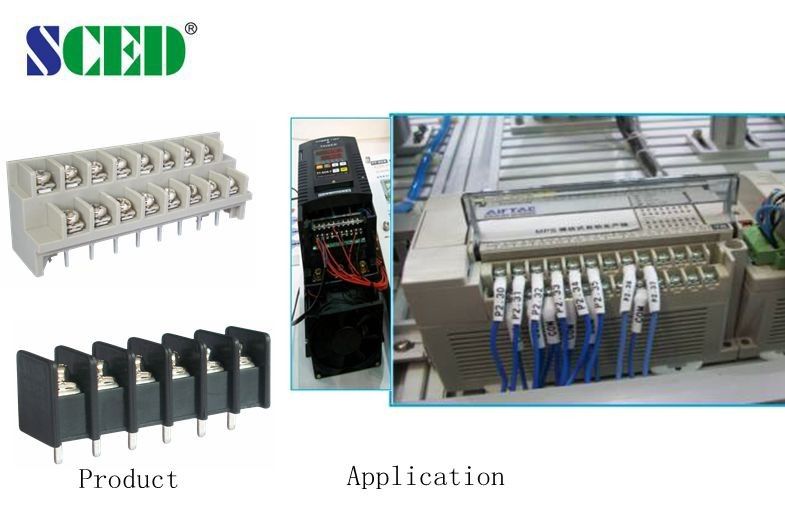

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Drawing photo

PCB Screw Connector Barrier Terminal Block 7.62mm 9.52mm For Inverter Power 1

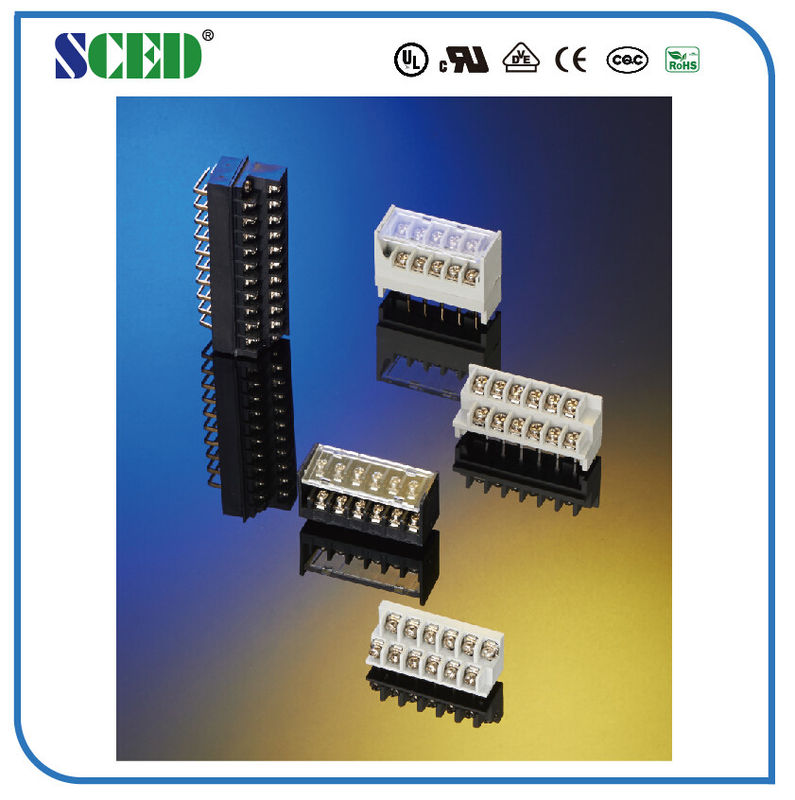

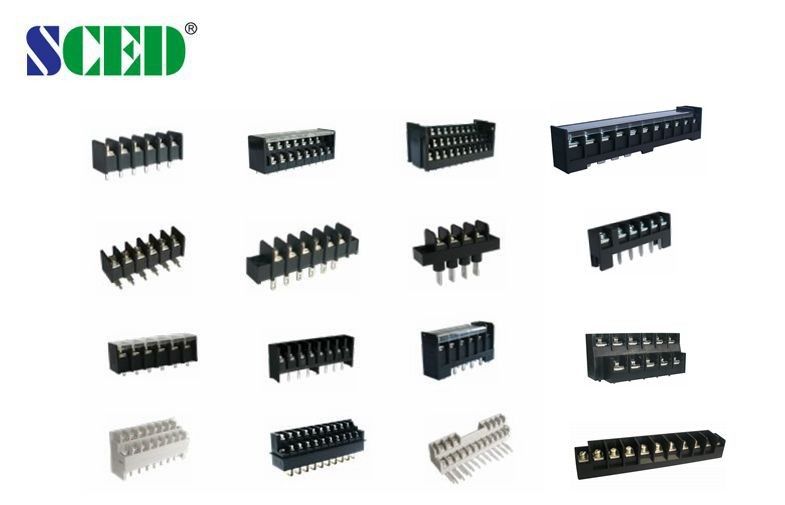

More products
