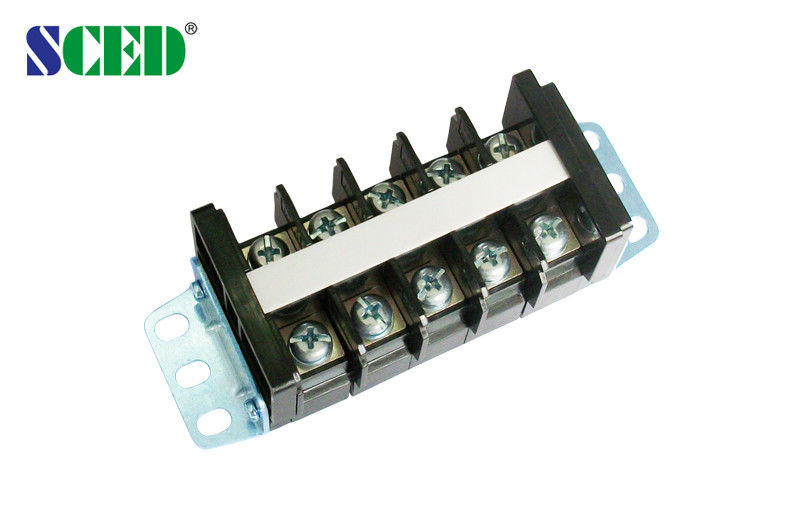

PC M5 Panel Mount Screw Terminal Pitch 19.00mm 60 Amp Din Rail Terminal Block

PC M5 Panel Mount Screw Terminal Pitch 19.00mm 60 Amp Din Rail Terminal Block

  • PC M5 Panel Mount Screw Terminal Pitch 19.00mm 60 Amp Din Rail Terminal Block
  • PC M5 Panel Mount Screw Terminal Pitch 19.00mm 60 Amp Din Rail Terminal Block
PC M5 Panel Mount Screw Terminal Pitch 19.00mm 60 Amp Din Rail Terminal Block
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR60-01-BM0
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Type: Panel Mount Terminal Block,Barrier Terminal Blocks, Power Terminal Blocks, Electrical Terminal Block Pitch: 19.00mm
Number Of Contacts: Any Poles Available Wire Range: 4-20 Awg
Rated Voltage: 600V Rated Current: 60A
Color: Black Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
High Light:

panel mount terminal block connector

,

pcb mount terminal blocks



PC M5 Panel Mount Screw Terminal Pitch 19.00mm 60 Amp Din Rail Terminal Block


Spec.


1. Right angle wire inlet;
2. Double levels;

3. Pitch: 19.00mm

4. Color: Black

5. 600V/60A

6. Wire range: 4-20AWG


Applications:



1. Mount on Din Rail

2. Switch electronic

3. Industrial Control

4. Power supply

5. Energy conservation


Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 60

600 / 60



Wire Range                               AWG

4-20

4-20



IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current                V/A

800 / 60

1000 / 60

1000 / 60

Rated Surge Voltage                     KV

8

8

8

Rated Connecting Capacity           mm2

14

Material



Insulation Material / Inflammability Class

PC / UL94, V-0

Terminal / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

12-15

Screw / Torque                    / lbf.in

M5 / 18-22





Feature Advantage:



1. Combined to be different positions

2. Products can be mounted into Din rail

3. This series has good mechanical properties and electrical performance


Competitive Advantage:


1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand



Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.


How to order:
PC M5 Panel Mount Screw Terminal Pitch 19.00mm 60 Amp Din Rail Terminal Block 0



Drawing:


PC M5 Panel Mount Screw Terminal Pitch 19.00mm 60 Amp Din Rail Terminal Block 1
