Femae Pluggable Plug In Terminal Block 2 - 22 Poles 18A Screwless Terminal Connector

Femae Pluggable Plug In Terminal Block 2 - 22 Poles 18A Screwless Terminal Connector

  • Femae Pluggable Plug In Terminal Block 2 - 22 Poles 18A Screwless Terminal Connector
  • Femae Pluggable Plug In Terminal Block 2 - 22 Poles 18A Screwless Terminal Connector
  • Femae Pluggable Plug In Terminal Block 2 - 22 Poles 18A Screwless Terminal Connector
Femae Pluggable Plug In Terminal Block 2 - 22 Poles 18A Screwless Terminal Connector
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TP508H-10F-D8
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Wire Inlet: Vertical Wire Inlet Applications: PCB, Frequency Converter,etc.
Color: Green Number Of Contacts: 2-22pins
Pitch: 5.08mm Rated Current: 18A
Rated Voltage: 300V Type: Female Pluggable Terminal Blocks
High Light:

power terminal block connector

,

electric terminal block

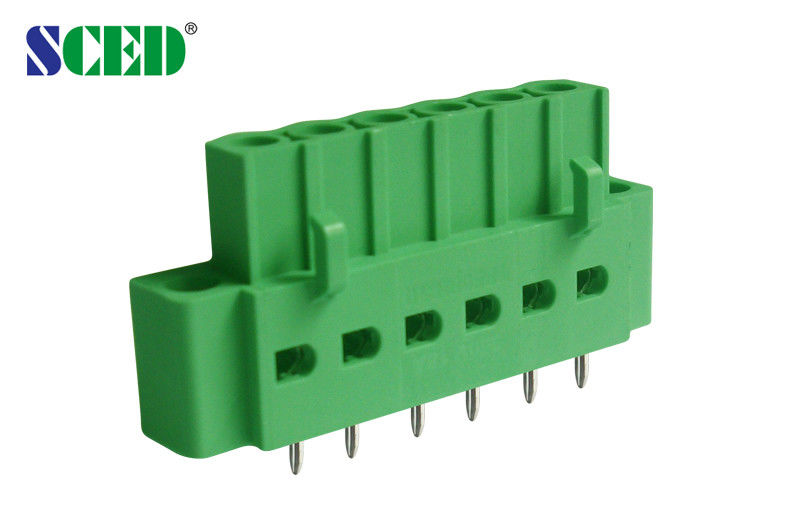

Femae Pluggable Terminal Block 2 - 22 Poles 18A Screwless Terminal Connector




Quick Detail



1. Pluggable terminal blocks is widely used in servo drive, security commucation, power industry, energy conservation and etc.



1. can be connected with TP508H-06F


2. The pluggable system work toghter by plug and header.



3. The main characteristics is they can be achieved power on or off freely.



4. The plug can be plugged in and out very conveniently.



5. Material: Plastic housing is PA66(UL94 V-0), operating temperature: -40℃~+105℃ Clamp cage and header terminal using brass, spring clamp with phosphor bronze, screw using high quality steel.




Standard color: Green color. Other colors also available, please refer to below How to Order and

select the color

you want.


Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors





How to order:
Femae Pluggable Plug In Terminal Block 2 - 22 Poles 18A Screwless Terminal Connector 0


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,

 Military,
Elevator, etc..


Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 18





Wire Range                                AWG







IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

320 / 24

320 / 24

630 / 24

Rated Surge Voltage                   KV

4

4

4

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0 (THR: PA46, UL94, V-0)

Terminal / Plating

Copper / Tin Plated

Other Data



PCB Hole Diameter               mm

φ1.5

PinDimension                       mm

0.4 x 1.1




Competitive Advantage:


1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand​​



Drawing Photo



Femae Pluggable Plug In Terminal Block 2 - 22 Poles 18A Screwless Terminal Connector 1



can be connected with TP508H-06F

Femae Pluggable Plug In Terminal Block 2 - 22 Poles 18A Screwless Terminal Connector 2
