6A - 500A Full Range PCB Mount Terminal Block UL CUL VDE CQC CE Certificates

6A - 500A Full Range PCB Mount Terminal Block UL CUL VDE CQC CE Certificates

  • 6A - 500A Full Range PCB Mount Terminal Block UL CUL VDE CQC CE Certificates
  • 6A - 500A Full Range PCB Mount Terminal Block UL CUL VDE CQC CE Certificates
  • 6A - 500A Full Range PCB Mount Terminal Block UL CUL VDE CQC CE Certificates
  • 6A - 500A Full Range PCB Mount Terminal Block UL CUL VDE CQC CE Certificates
6A - 500A Full Range PCB Mount Terminal Block UL CUL VDE CQC CE Certificates
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE, CQC, VDE
Model Number: TJ381
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price USD 0.08 - 4.98 per pole
Packaging Details: Standard Export Carton
Delivery Time: 5 - 20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Plastic Material: PA66, PBT, PC Metal Material: Copper, Brass, Iron
Wire Range: 750kcmil - 32 AWG Volt Range: 63V - 1000V
Current Range: 6A - 500A Color: Green, Black, Grey, Etc.
Rated Surge Voltage: No Abnormal Within 1 Minute Inflammability Class: UL94, V-0
Insulation Resistance: Above DC500V, 500MΩ Contact Resistance: Less Than 8mΩ
High Light:

pcb screw terminal blocks

,

pcb terminal block connectors



6A - 500A Full Range PCB Mount Terminal Block UL CUL VDE CQC CE Certificates



Descripition:

SCED professional in terminal blocks and we have 10 series, please select the right one for your market, and we will contact you soon. Below are more informations about our company and products' applications.



Certificates:

UL, CUL, CE, CQC, VDE, ISO9001, ISO14001, Patent, Honors, etc.

6A - 500A Full Range PCB Mount Terminal Block UL CUL VDE CQC CE Certificates 0



Company Informations:

6A - 500A Full Range PCB Mount Terminal Block UL CUL VDE CQC CE Certificates 1





Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, below are some photos for review, etc..

6A - 500A Full Range PCB Mount Terminal Block UL CUL VDE CQC CE Certificates 2



6A - 500A Full Range PCB Mount Terminal Block UL CUL VDE CQC CE Certificates 3



6A - 500A Full Range PCB Mount Terminal Block UL CUL VDE CQC CE Certificates 4

6A - 500A Full Range PCB Mount Terminal Block UL CUL VDE CQC CE Certificates 5



Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand



For each products, we have the drawing and spec. like below, it's very convenience to check and compare.



Parameter and Drawing Specifications:

ULTechnical Data

B

C

D

Rated Voltage / Current              V/A

300 / 30

300 / 30



Wire Range                       AWG

10-30

10-30



IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

630 / 32

1000 / 32

1000 / 32

Rated Surge Voltage                 KV

6

8

6

Rated Connecting Capacity           mm2

4.0

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



PCB Hole Diameter                 mm

φ1.9

Stripping Length                    mm

7-8

Screw / Torque                    / lbf.in

M3 / 4.4-5.3

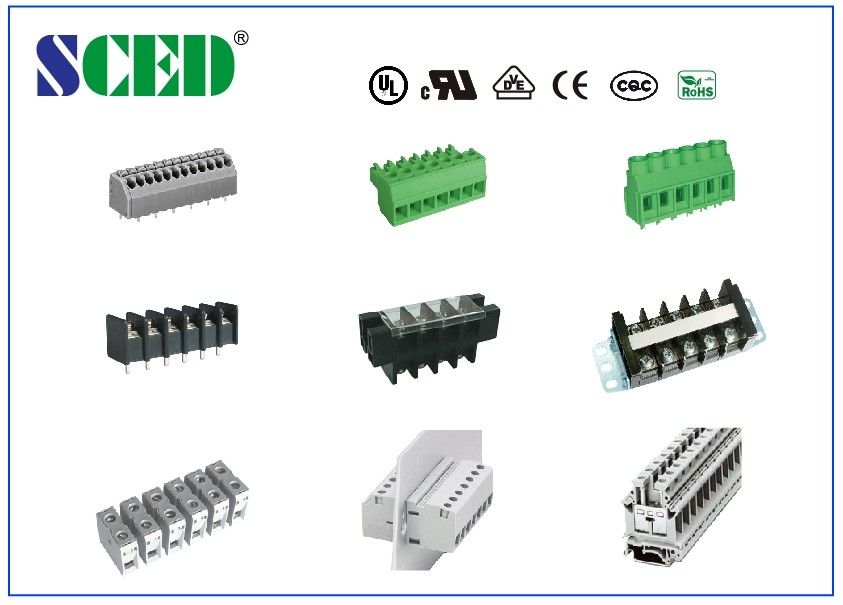

For each series, we also have the promote photo look like below, hope this will help customer to find the exactly products more quickly.



6A - 500A Full Range PCB Mount Terminal Block UL CUL VDE CQC CE Certificates 7
