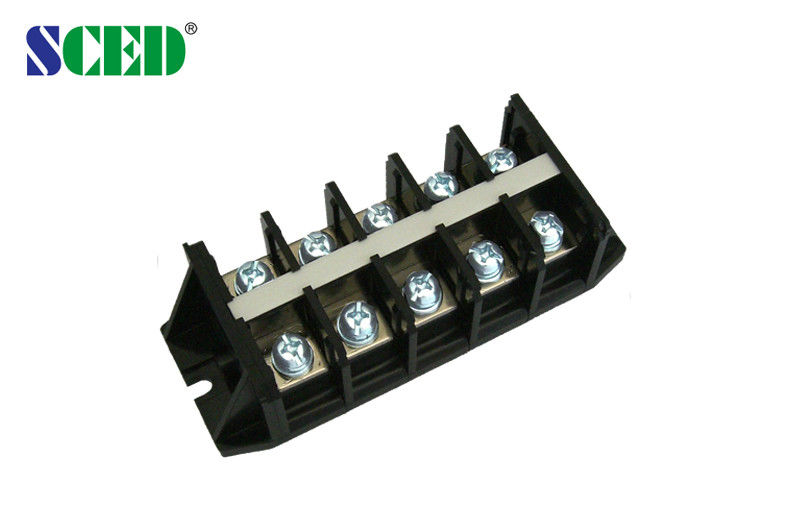

40A High Current Terminal Block 14.80mm Din Rail PCB Panel Mount Terminal Connector

40A High Current Terminal Block 14.80mm Din Rail PCB Panel Mount Terminal Connector

  • 40A High Current Terminal Block 14.80mm Din Rail PCB Panel Mount Terminal Connector
  • 40A High Current Terminal Block 14.80mm Din Rail PCB Panel Mount Terminal Connector
40A High Current Terminal Block 14.80mm Din Rail PCB Panel Mount Terminal Connector
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE, CQC
Model Number: TR40-02-BM0
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Pitch: 14.80mm Color: Black
Voltage: 600V Current: 40A
Material: PC Application: Switch, Power Supply, Electric Lighting, Industry Control,
High Light:

wiring terminal blocks

,

power terminal block

40A High Current Terminal Block 14.80mm Din Rail PCB Panel Mount Terminal Connector





Parameter and Drawing Specifications:



UL Technical Data B C D
Rated Voltage / Current V/A 600 / 40 600 / 40 600 / 5
Wire Range AWG 8-22 8-22 10-20
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 /40 1000 / 40 1000 / 40
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 8
Material
Insulation Material / Inflammability Class PC / UL94, V-0
Conduction Board/ Plating Brass /Nickel Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 10-12
Screw Torque mm M4 / 14-18





Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting,



Industry Control, Automation,



Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



Stable good quality

Competitive price

Quickly response

Full range products for selection

Flexible to design the exact part per customers’ demand

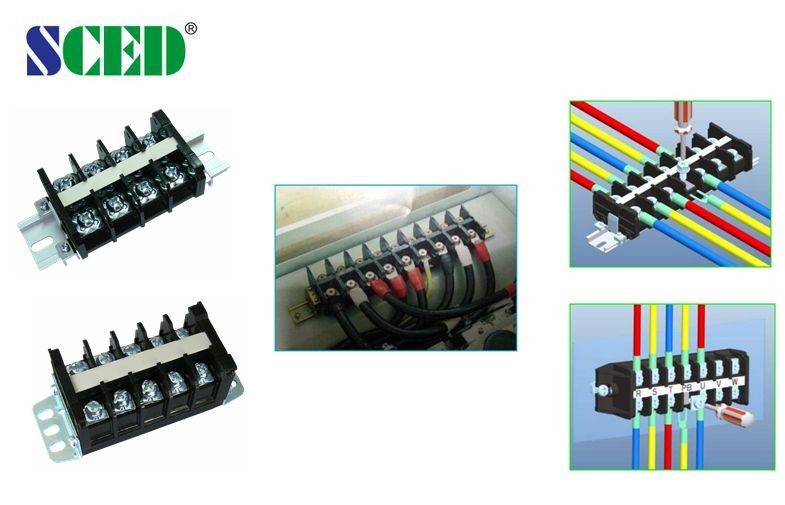

Drawing Photo



40A High Current Terminal Block 14.80mm Din Rail PCB Panel Mount Terminal Connector 0
