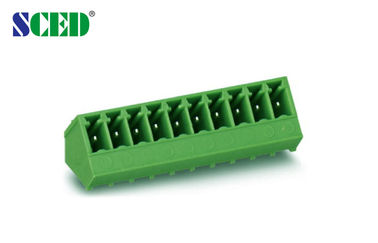

3.81mm 300V 8A Pluggable PCB Terminal Block 2P - 22P 45 Degree Wire Inlet

3.81mm 300V 8A Pluggable PCB Terminal Block 2P - 22P 45 Degree Wire Inlet

  • 3.81mm 300V 8A Pluggable PCB Terminal Block 2P - 22P 45 Degree Wire Inlet
3.81mm 300V 8A Pluggable PCB Terminal Block 2P - 22P 45 Degree Wire Inlet
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TP381H-02
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Wire Inlet: 45 Degree Wire Inlet Type: Pluggable Terminal Block,Terminal Block Connectors, PCB Connectors
Pitch: 3.81mm Number Of Contacts: 2P-22P
Rated Voltage: 300V Rated Current: 8A
Color: Green Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
High Light:

pluggable terminal block connector

,

plug in terminal block

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





3.81mm 300V 8A Pluggable PCB Terminal Block 2P - 22P 45 Degree Wire Inlet

□Right angle wire inlet;  □Vertical wire inlet;  ■45 degree wire inlet
■Single Level;  □Double Levels;  □Triple Levels



This male socket match with female plug series: TP381P-00, TP381P-01, TP381P-02, TP381P-03, TP381P-04

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors





How to order:

3.81mm 300V 8A Pluggable PCB Terminal Block 2P - 22P 45 Degree Wire Inlet 0




Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 8





IEC Technical Data







Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

160 / 8

160 / 8

320 / 8

Rated Surge Voltage                 KV

2.5

2.5

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Other Data



PCB Hole Diameter                  mm

1.2

Pin Dimension                      mm

0.8 x 0.8




3.81mm 300V 8A Pluggable PCB Terminal Block 2P - 22P 45 Degree Wire Inlet 1


Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
