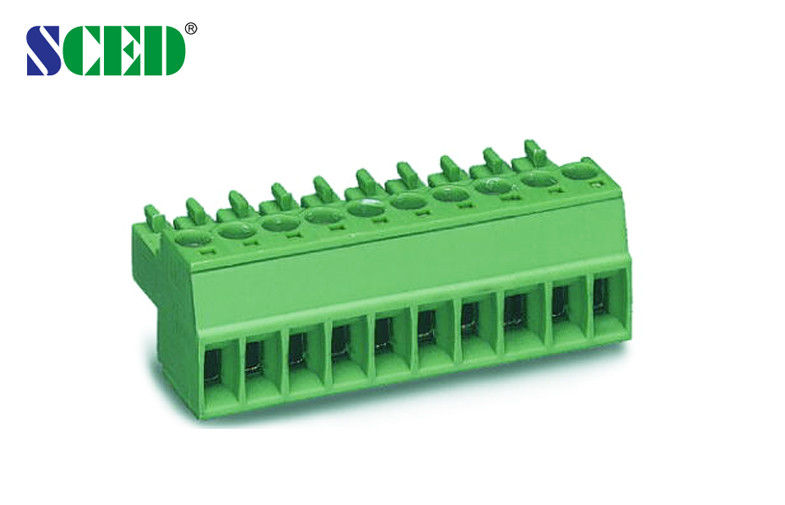

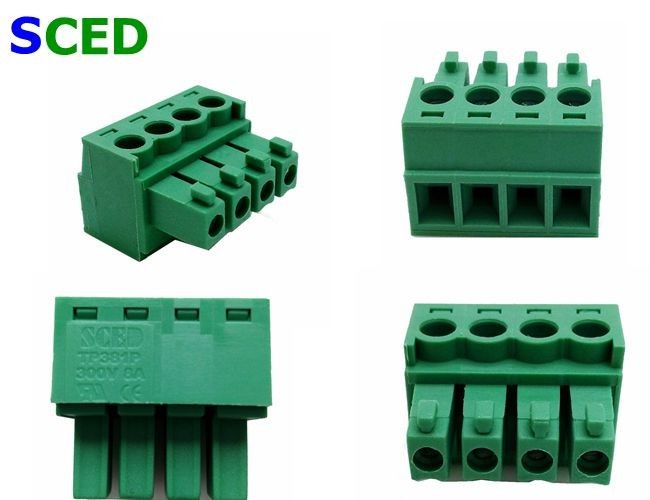

300V 8A PCB Plug In Terminal Block 3.81mm Pitch Pluggable Terminal Block

300V 8A PCB Plug In Terminal Block 3.81mm Pitch Pluggable Terminal Block

  • 300V 8A PCB Plug In Terminal Block 3.81mm Pitch Pluggable Terminal Block
  • 300V 8A PCB Plug In Terminal Block 3.81mm Pitch Pluggable Terminal Block
  • 300V 8A PCB Plug In Terminal Block 3.81mm Pitch Pluggable Terminal Block
300V 8A PCB Plug In Terminal Block 3.81mm Pitch Pluggable Terminal Block
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TP381P-00
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Imflammability: UL94, V-0 Housing Material: PA66
Pitch: 3.81mm Current: 8A
Screw: Steel Contactor: Phosphor Bronze
High Light:

power distribution terminal block

,

power terminal block connector

300V 8A PCB Plug In Terminal Block 3.81mm Pitch Pluggable Terminal Block



Descripition:



1. Material: Plastic housing is PA66(UL94 V-0),

2. Operating temperature: -40 ℃~+105℃,

3. Clamp cage and header terminal using brass

4. Spring clamp with phophor bronze

5. Screw using high quality steel

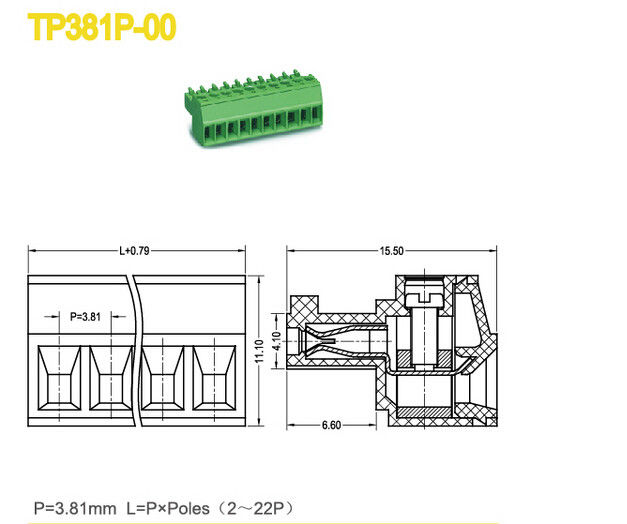

Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 8





Wire Range                       AWG

16-30





IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

160 / 8

160 / 8

320 / 8

Rated Surge Voltage                 KV

2.5

2.5

2.5

Rated Connecting Capacity           mm2

1.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Phosphor Bronze / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

7

Screw / Torque                    / lbf.in

M2 / 2-2.2





Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.





Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

300V 8A PCB Plug In Terminal Block 3.81mm Pitch Pluggable Terminal Block 0

300V 8A PCB Plug In Terminal Block 3.81mm Pitch Pluggable Terminal Block 1300V 8A PCB Plug In Terminal Block 3.81mm Pitch Pluggable Terminal Block 2

300V 8A PCB Plug In Terminal Block 3.81mm Pitch Pluggable Terminal Block 3

300V 8A PCB Plug In Terminal Block 3.81mm Pitch Pluggable Terminal Block 4
