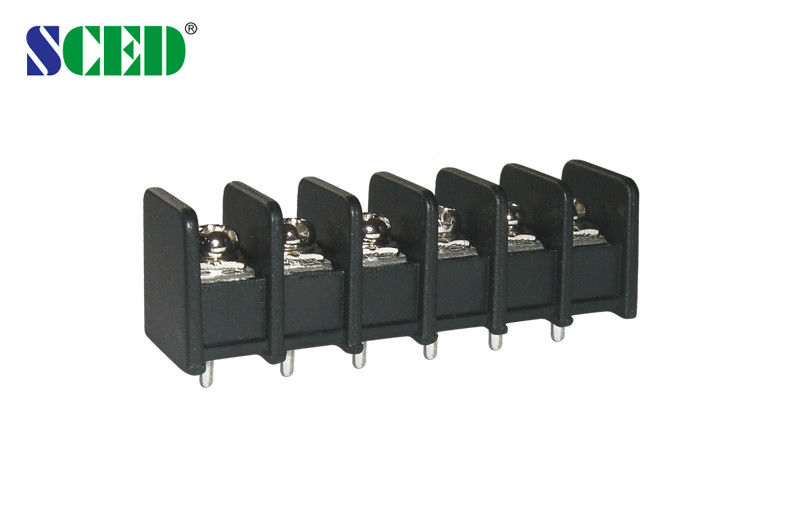

2 Pin - 32 Pin Barrier Type Terminal Block / PCB Wire Terminals UL CE

2 Pin - 32 Pin Barrier Type Terminal Block / PCB Wire Terminals UL CE

  • 2 Pin - 32 Pin Barrier Type Terminal Block / PCB Wire Terminals UL CE
  • 2 Pin - 32 Pin Barrier Type Terminal Block / PCB Wire Terminals UL CE
2 Pin - 32 Pin Barrier Type Terminal Block / PCB Wire Terminals UL CE
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TB825-01
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Levels: Single Level Wire Inlet: Right Angle Wire Inlet
Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Color: Black
Number Of Contacts: 2P-32P Pitch: 8.255mm
Rated Current: 20A Rated Voltage: 300V
Type: Barrier Terminal Block,Power Terminal Blocks, Electrical Terminal Blocks Wire Range: 12-26
High Light:

electrical terminal block

,

pcb terminal blocks





2 Pin - 32 Pin Barrier Type Terminal Block / PCB Wire Terminals UL CE





Standard color: Black. Other colors also available, please refer to below How to Order and select the color

 you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers





■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Level;  □Double levels;  □Triple levels



How to order:

2 Pin - 32 Pin Barrier Type Terminal Block / PCB Wire Terminals UL CE 0





Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,

Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,

Elevator, etc..





Parameter and Drawing Specifications:



UL Technical Data

B          C          D

Rated Voltage / Current              V/A

   300 / 20                 300 / 10

Wire Range                       AWG

    12-26                    12-26

IEC Technical Data



Overvoltage Category

       Ⅲ         Ⅲ         Ⅱ

Contamination Class

 3          2          2

Rated Voltage / Current              V/A

  320 / 32    400 / 32      630 / 32

Rated Surge Voltage                 KV

       4          4           4

Rated Connecting Capacity           mm2

4

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass Tin / Plated

Screw / Plating

Steel / Nickel Plated

Other Data



PCB Hole Diameter                  mm

              φ1.8

Stripping Length                    mm

               6-7

Screw / Torque                    / lbf.in

            M 3/ 5-7

2 Pin - 32 Pin Barrier Type Terminal Block / PCB Wire Terminals UL CE 1







Competitive Advantage:



1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
