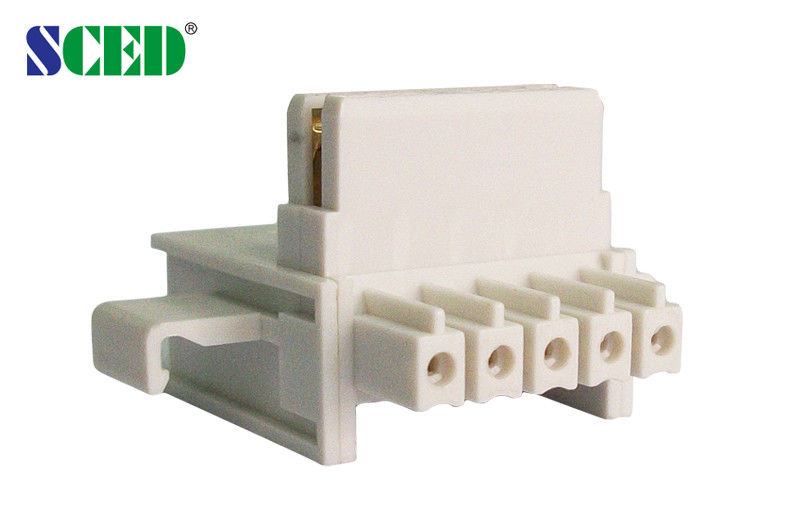

10A Male And Female Power Distribution Terminal Block Connector 5 Pin Grey Color

10A Male And Female Power Distribution Terminal Block Connector 5 Pin Grey Color

  • 10A Male And Female Power Distribution Terminal Block Connector 5 Pin Grey Color
  • 10A Male And Female Power Distribution Terminal Block Connector 5 Pin Grey Color
10A Male And Female Power Distribution Terminal Block Connector 5 Pin Grey Color
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TP381H-04
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Type: Male Terminal Rated Voltage: 150V
Rated Current: 10A Material: PA66
Color: Grey Terminal: Phosphor Bronze / Tin Plated
High Light:

power distribution terminal block

,

power terminal block connector

10A Male And Female Plug In Terminal Block Connector 5 Pin Grey Color



Details:



■Single Level; □Double Levels; □Triple Levels



This part is design for modular housing, for further information, please contact us and we will response you very quickly.



Parameter:



UL Technical Data B C D
Rated Voltage / Current V/A 150/10
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 160 / 10 160 / 10 320 / 10
Rated Surge Voltage KV 2.5 2.5 2.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Terminal / Plating Phosphor Bronze / Tin Plated
Other Data
Pin Dimension mm 0.8 x 0.8





10A Male And Female Power Distribution Terminal Block Connector 5 Pin Grey Color 0



Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.



Competitive Advantage:



  • Stable good quality
  • Competitive price
  • Quickly response
  • Full range products for selection
  • Flexible to design the exact part per customers’ demand

Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Drawing Photo

10A Male And Female Power Distribution Terminal Block Connector 5 Pin Grey Color 1



10A Male And Female Power Distribution Terminal Block Connector 5 Pin Grey Color 2
